LinearResponseG™ Invisible Speakers

LinearResponseG™ full range, high-output invisible speakers incorporate patented Stealth technology to provide category-leading sound quality and extended bass response, all while eliminating the unsightly grilles and bulky boxes of traditional speakers.

The award-winning line of Made In America totally invisible speakers and subwoofers, utilize injection molded frames, low profile high-power cone woofers, Neodymium tweeters and multi-stage crossover networks to deliver unmatched warmth, realism and depth of sound.

From foreground music systems to home theaters; board rooms to conference rooms and masking systems, Stealth provides you with the most capable and best sounding family of totally invisible architectural speakers available in the world.

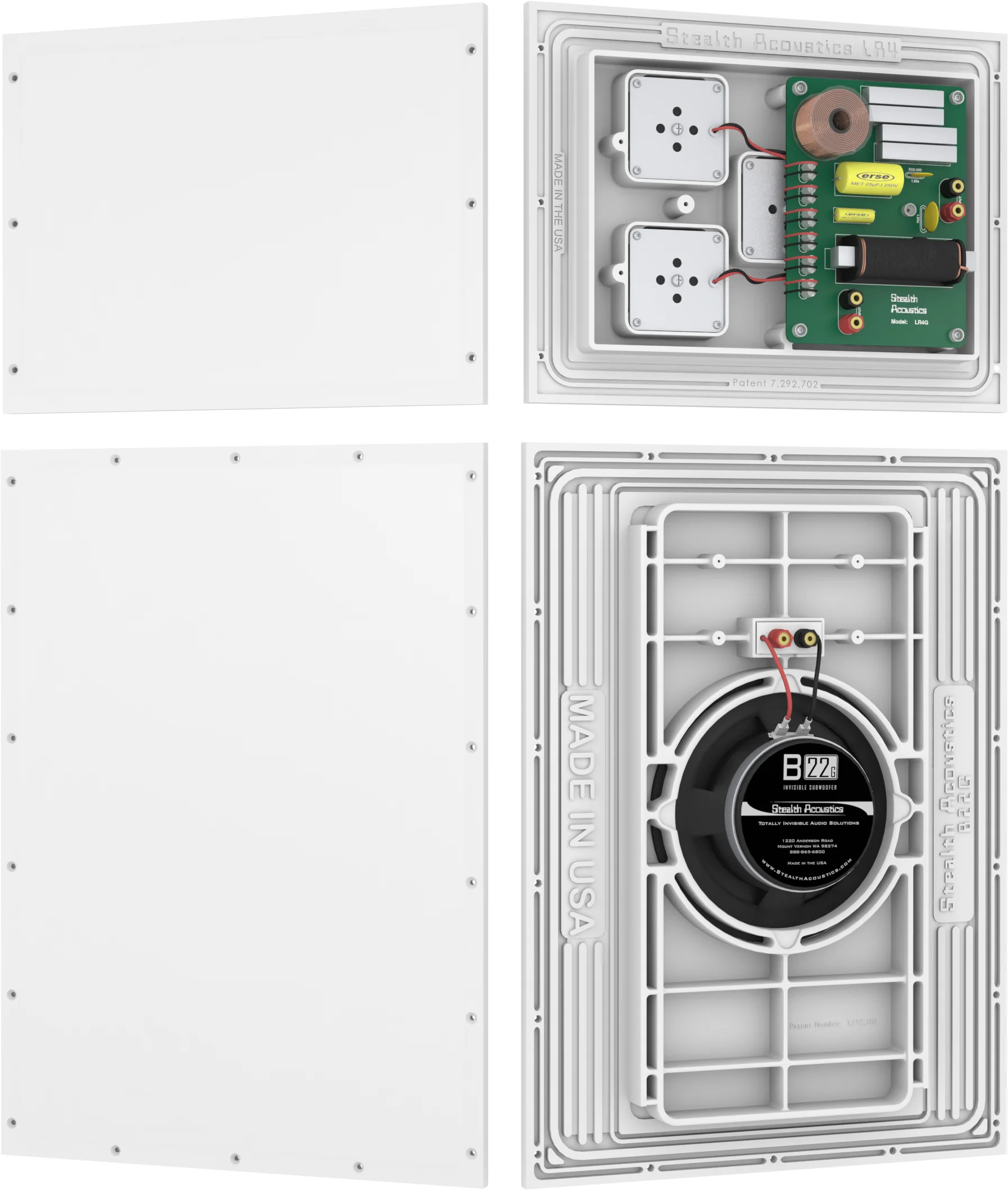

LR4G

FULL RANGE, 6-ELEMENT PREMIUMINVISIBLE SPEAKER

The Stealth Acoustics model LR4G is a two panel, in-wall or in ceiling speaker that becomes completely invisible after installation. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting perimeter. This model utilizes a separate panel for the low frequency driver to maximize clarity and reduce intermodulation distortion.

The LR4G incorporates four direct-to-fiber neodymium midrange motors and one direct-to-fiber neodymium high-frequency motor aligned in the new Stealth Quad-Balanced Midrange Drive configuration. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the LR4G is installed in standard insulated 2″ x 4″ framing and allowed to function in a full 8 foot stud bay, frequence response below 45 Hz can be achieved with the separate low frequency panel.

The LR4G contains three independant protection circuits (low, mid-range and high frequency sections) that automatically reset upon reduction of excessive amplifier power.





LR3G

FULL RANGE, INVISIBLE IN-WALL OR IN-CEILING SPEAKER

The Stealth Acoustics model LR3G is a 3-way, full-range speaker system that becomes completely invisible after installation. The speaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.

The Stealth Acoustics LR3G incorporates an acoustically coupled high-power 8” cone woofer with 3 directly coupled 25 mm neo-magnet high-frequency motors. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the LR3G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45 Hz can be achieved. The LR3G contains three independent protection circuits (low, mid-range and high frequency sections) that automatically reset upon reduction of excessive amplifier power.

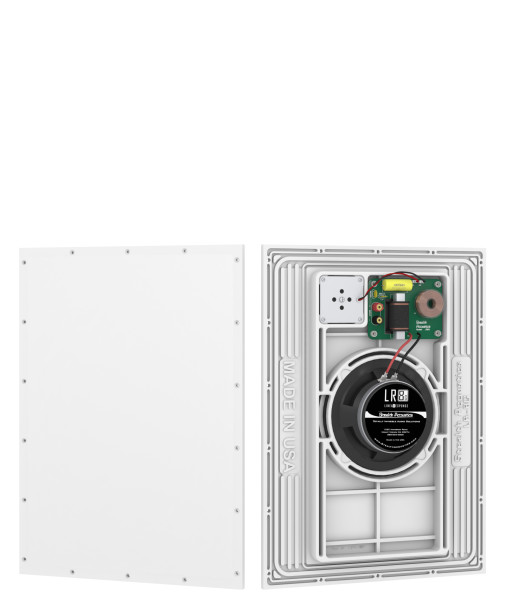

LR8G

2-WAY INVISIBLE IN-WALL OR IN-CEILING SPEAKER

The Stealth Acoustics model LR8G is a two-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.

The LR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.

The Stealth Acoustics LR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and a direct coupled 25 mm neo-magnet high-frequency motor. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the LR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 40 Hz can be achieved. The LR8G contains two independent protection circuits (high-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.



LR6G

FULL RANGE, 2-WAY INVISIBLE IN-WALL OR IN-CEILING SPEAKER

The Stealth Acoustics model LR6G is a 2-way, full-range speaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.

The Stealth Acoustics LR6G incorporates an acoustically coupled, high-power 6.5” cone woofer and a direct coupled 30 mm neo-magnet high-frequency motor. Advanced internal carbon fiber materials allow for smooth frequency extension to 20kHz. When the LR6G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45Hz can be achieved. The LR6G contains two independent protection circuits (high-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.



B22G

INVISIBLE SUBWOOFER

The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a heavy duty rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.  Each panel incorporates an acoustically coupled, high-quality, high-power 8” (203 mm) cone woofer.

Stealth Acoustics recommends the companion Model SA255 250-watt subwoofer amplifier/crossover as a matched amplifier for the B22G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B22G, deliver a complete, totally invisible audio solution.


B22g-website-e1455056289895 (1).jpg

B22G

INVISIBLE SUBWOOFER

The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a heavy duty rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.  Each panel incorporates an acoustically coupled, high-quality, high-power 8” (203 mm) cone woofer.

Stealth Acoustics recommends the companion Model SA2555 250-watt subwoofer amplifier/crossover as a matched amplifier for the B22G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B22G, deliver a complete, totally invisible audio solution.

The B22G may be installed in either the wall or ceiling.  It can be finished on site with latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
